■产品结构
介质:金属化聚丙烯薄膜
外壳:塑料外壳或 Mylar 胶带外壳
内部灌封:树脂填充（UL94 V-0）
■Product Structure
Medium: metallized polypropylene film
Shell: Plastic shell or Mylar Tape housing
Internal potting: resin filling (UL94 V-0)
■特点
•产品体积小，散热良好；
•釆用镀锡铜端子引出；
•自感小、等效串联电阻低；
•承受电流冲击能力强；
■Features
Small product size, excellent heat dissipation
Tinned copper terminals as a lead.
Low self-inductance and equivalent series resistance.
Strong ability for withstanding impacting of current.
■应用场合
•交直流滤波、高频大电流场合
•逆变焊机
•UPS、电动汽车等
■Applications
AC/DC filtering, high frequency and high current occasions
Inverter welding machine
UPS, electric vehicle, etc

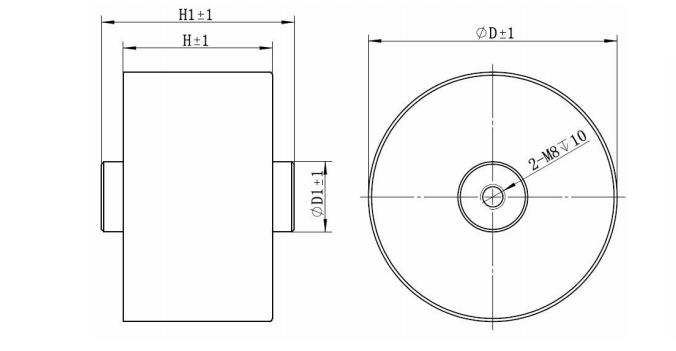

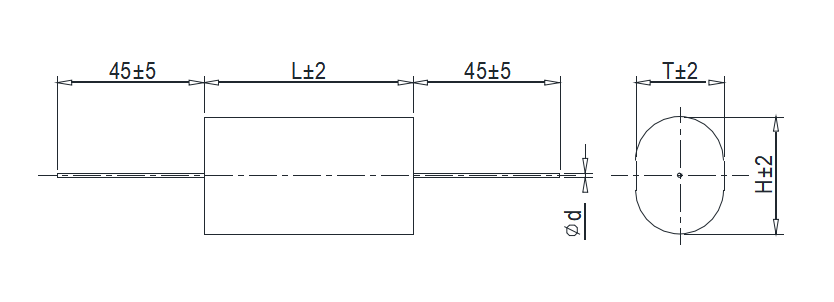

■外形图 Outline Drawing
■技术要求 Specifications
Reference standard 参考标准 | GB/T17702, IEC 61071 |
Climatic category 气候类别 | 40/85/56 |
Operating temperature range (case) 工作温度范围（外壳） | Max. operating temperature, Top +85℃最高工作温度 Lower category temperature Tmin -40℃ 最低工作温度 |
For temperatures between 85 °C and 105 °C 在 85℃到 105℃之间电压降低率 | 1.33%/°C of Vop derating compared to VR at 85 °C 每度按照 1.33%的 VR 进行下降 |
Rated voltage（VR)85℃ 额定电压 | 500VDC/600VDC/800VDC/900VDC/1000VDC 1100VDC/1400VDC |
Capacitance tolerance 容量偏差 | J(±5%） K(±10%） |
DC test voltage between terminals (10 s)直流耐压（电 极间） | 1.5*VR |
Voltage test terminal to case (10 s) 绝缘耐压（极壳间） | 3000 V AC, 50 Hz |
Insulation Resistance 绝缘电阻 | > 10 000 s ( 20℃，100vdc，1min) |
Maximum peak current 峰值电流 | IP=C*dV/dT |
Operation life time 预期使用寿命 | 50 000 h at VR and 85℃ |
Biased humidity test | 1000 hours / 60 °C / 95% relative humidity with VR |
耐湿负荷 | 在 60°C / 95％相对湿度环境下加载VR测试1000H |
| Capacitance change ∣ΔC/C∣ ≤ 5% |
Performance requirements 性能要求 | 容量变化： ∣ΔC/C∣ ≤ 5% Dissipation factor change Δ tan δ ≤ 0.025 (at 10 kHz) 损耗变化 Δ tan δ ≤ 0.025 (at 10 kHz） |
| Insulation resistance Rins ≥ 50% of initial limit |
| 绝缘电阻 Rins ≥ 50%规定值 |

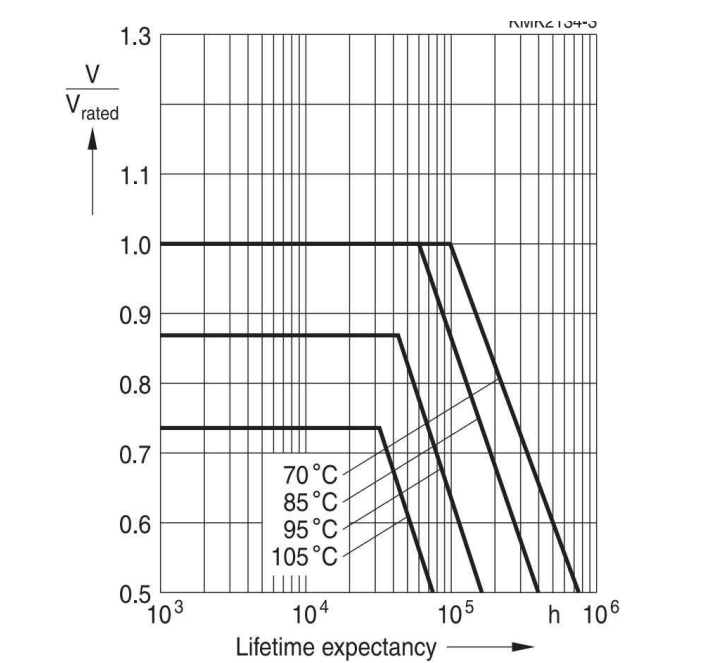

■预期寿命曲线 Expected Lifetime curve
■技术参数 Technical data ( mm )
扁芯子Flat core |
C (uF) | Un (V) | Imax. (A) | dV/dt (V/us) | Ls (nH) | Ut-t (V) | Ut-c (V) | Tgδ*10-4 | Size |
10kHz | (mm) |
0.47 | 1200VDC | 7 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 46*18*34 |
1 | 1200VDC | 15 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 46*34*36 |
2 | 1200VDC | 25 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 50*46*50 |
3 | 1200VDC | 35 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 50*46*50 |
30 | 1200VDC | 30 | 200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 74*46*49 |
40 | 1200VDC | 40 | 200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | 74*46*49 |
圆芯子Round core |
2 | 500VDC | 25 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | Φ63*49 |
3 | 500VDC | 35 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | Φ63*49 |
4 | 500VDC | 50 | 1200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | Φ63*49 |
5 | 500VDC | 60 | 1300 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | Φ63*49 |
6 | 500VDC | 80 | 1400 | ≤10 | 1800V,10S | 3000VAC,60S | ≤10 | Φ76*49 |
10 | 1400VDC | 6 | 200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤30 | Φ50*60 |
20 | 1400VDC | 10 | 200 | ≤10 | 1800V,10S | 3000VAC,60S | ≤30 | Φ50*60 |
50 | 350VDC | 14 | 200 | ≤10 | 600V,10S | 3000VAC,60S | ≤30 | Φ50*60 |
40 | 800VDC | 10 | 200 | ≤10 | 1200V,10S | 3000VAC,60S | ≤30 | Φ40*60 |
60 | 800VDC | 15 | 200 | ≤10 | 1200V,10S | 3000VAC,60S | ≤30 | Φ50*60 |
100 | 800VDC | 28 | 200 | ≤10 | 1200V,10S | 3000VAC,60S | ≤30 | Φ62*60 |
200 | 800VDC | 26 | 200 | ≤10 | 1200V,10S | 3000VAC,60S | ≤30 | Φ60*110 |
更多的产品尺寸和参数需要定制（More product sizes and parameters need to be customized）
