详细说明

MKP-LM(PCB-DCTHB型)

收藏

商品说明

■产品结构

介质:金属化聚丙烯薄膜

外壳:塑壳封装

内部灌封:树脂填充（UL94 V-0）

■Product Structure

Medium: metallized polypropylene film

Shell: Plastic shell package

Internal potting: resin filling (UL94 V-0)

■特点

•耐高湿性能良好

•容量大，体积小

•优秀的过电压和过电流能力

•可靠性高，有自愈性，寿命长

■Features

Good High humidity resistance

Large capacitance,small size

Excellent over voltage and over current capability

High reliability,Self-healing property,Long lifetime

■应用场合

•变频器

•工业和高端电源

•汽车 DC-DC 和太阳能逆变器

■Applications

Frequency converters

Industrial and high-end power supplies

Automobile DC-DC and Solar inverters

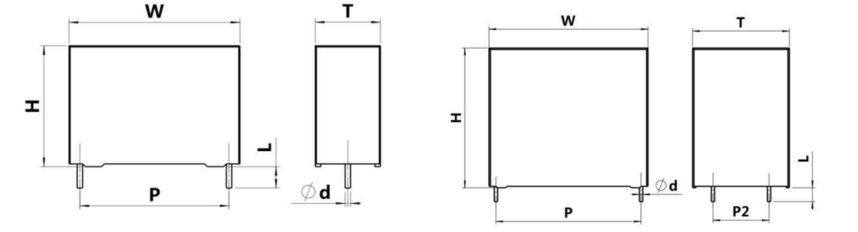

■外形图 Outline Drawing


■技术要求 Specifications

Reference standard参考标准	GB/T 17702-2021(IEC 61071:2007 )； IEC 60068
Climatic category气候类别	40/105/56
Operating temperature range (case) 工作温度范围（外壳）	Max. operating temperature, Top +105℃ 最高工作温度 Lower category temperature Tmin -40℃ 最低工作温度
For temperatures between 85 °C and 105 °C 在85℃到105℃之间电压降低率	1.33%/°C of Vop derating compared to VR at 85 °C 每度按照1.33%的VR进行下降
Ratedvoltage（VR)85℃ 额定电压	500VDC/600VDC/800VDC/900VDC/1000VDC 1100VDC/1200VDC
Capacitance tolerance容量偏差	J(±5%） K(±10%）
DC test voltage between terminals (10 s) 直流耐压（电极间）	1.5*VR
Voltage test terminal to case (10 s) 绝缘耐压（极壳间）	2100 V AC, 50 Hz
Insulation Resistance绝缘电阻	> 10 000 s ( 20℃，100vdc，1min)
Maximum peak current峰值电流	IP=C*dV/dT
Operation life time预期使用寿命	50 000 h at VR and 85℃
Biased humidity test 耐湿负荷 Performance requirements 性能要求	1000 hours / 85°C / 85% relative humidity with VR 在 85°C / 85％相对湿度环境下加载VR测试1000H Capacitance change ∣ΔC/C∣ ≤ 10% 容量变化： ∣ΔC/C∣ ≤ 10% Dissipation factor change δ tan ä ≤ 0.025 (at 10 kHz) 损耗变化 δ tan ä ≤ 0.025 (at 10 kHz） Insulation resistance Rins ≥ 50% of initial limit 绝缘电阻 Rins ≥ 50%规定值

■技术参数 Technical data ( mm )

VR=500Vdc at 85℃
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	Tgδ*10-4		ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	1kHz	10kHz	ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
5	32.0	21.0	11.0	27.5	-	0.8	30	12	120	25	3.0
10	32.0	24.5	15.0	27.5	-	0.8	30	12	120	7.5	6.5
22	32.0	36.5	22.0	27.5	-	1.0	30	12	120	5.0	10.0
30	42.0	40.0	20.0	37.5	10.2	1.0	21	22	220	8.0	12.5
35	42.0	36.0	24.0	37.5	10.2	1.0	21	22	230	8.0	13.5
45	42.0	38.0	28.0	37.5	10.2	1.0	21	25	250	6.0	14.5
55	42.0	45.0	30.0	37.5	20.3	1.2	21	25	250	5.0	16.0
60	42.0	50.0	33.0	37.5	20.3	1.2	21	25	250	4.5	16.5
80	57.5	45.0	30.0	52.5	20.3	1.2	15	35	350	4.0	17.0
110	57.5	50.0	35.0	52.5	20.3	1.2	15	35	350	3.5	18.0
VR=600Vdc at 85℃
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt V/us）	Tgδ*10-4		ESR@10 kHz (mΩ）	Irms(A)@85℃10kHz
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt V/us）	1kHz	10kHz	ESR@10 kHz (mΩ）	Irms(A)@85℃10kHz
2	32.0	18.0	9.0	27.5	-	0.8	30	11	100	45.0	3.0
4	32.0	21.0	11.0	27.5	-	0.8	30	11	100	24.0	5.5
6	32.0	24.5	15.0	27.5	-	0.8	30	11	100	18.5	7.5
10	32.0	30.0	16.0	27.5	-	1.0	30	11	100	15.5	11.0
18	32.0	37.0	22.0	27.5	-	1.0	30	11	100	8.5	15.0
12	41.0	30.0	16.0	37.5	-	1.0	22	20	180	16.5	7.0
15	41.0	32.0	17.0	37.5	-	1.0	22	20	180	13.0	9.0
20	42.0	40.0	20.0	37.5	10.2	1.0	22	20	180	10.0	12.5
25	42.0	40.0	20.0	37.5	10.2	1.0	22	20	180	8.0	15.5
30	42.0	44.0	24.0	37.5	10.2	1.0	22	20	180	6.5	17.5
35	42.0	45.0	30.0	37.5	20.3	1.2	22	25	200	6.0	20.0
40	42.0	45.0	30.0	37.5	20.3	1.2	22	25	200	5.5	22.0
50	42.0	46.0	35.0	37.5	20.3	1.2	22	25	200	4.5	25.0
55	42.0	50.0	35.0	37.5	20.3	1.2	22	25	200	3.5	27.0
60	57.5	45.0	30.0	52.5	20.3	1.2	22	30	360	4.0	22.0
80	57.5	50.0	35.0	52.5	20.3	1.2	15	30	360	3.5	27.0
110	57.5	55.0	45.0	52.5	20.3	1.2	15	30	360	3.0	29.0

VR=800Vdc at 85℃
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	Tgδ*10-4		ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	1kHz	10kHz	ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
2	32.0	18.0	9.0	27.5	-	0.8	40	10	95	45.0	2.5
3	32.0	21.0	11.0	27.5	-	0.8	40	10	95	30.0	3.0
5	32.0	24.5	15.0	27.5	-	0.8	40	10	95	18.0	6.5
7	32.0	30.0	16.0	27.5	-	0.8	40	10	95	13.0	10.5
12	32.0	37.0	22.0	27.5	-	1.0	40	10	95	7.5	12.0
14	32.0	37.0	22.0	27.5	10.2	1.0	40	10	95	7.0	13.0
8	41.0	30.0	16.0	37.5	-	1.0	22	18	180	22.0	5.0
10	41.0	32.0	17.0	37.5	-	1.0	22	18	180	18.0	8.5
12	42.0	32.5	19.0	37.5	-	1.0	22	18	180	15.0	9.0
18	42.0	40.0	20.0	37.5	10.2	1.2	22	18	180	12.0	10.0
20	42.0	40.0	20.0	37.5	10.2	1.2	22	18	180	12.0	12.0
25	42.0	44.0	24.0	37.5	10.2	1.2	22	18	180	7.0	15.5
30	42.0	45.0	30.0	37.5	20.3	1.2	22	18	180	6.5	18.5
35	42.0	45.0	30.0	37.5	20.3	1.2	22	18	180	6.0	20.5
40	42.0	46.0	35.0	37.5	20.3	1.2	22	18	180	5.5	22.0
45	42.0	50.0	35.0	37.5	20.3	1.2	22	18	180	4.8	23.0
50	57.5	45.0	30.0	52.5	20.3	1.2	15	33	320	8.0	18.0
55	57.5	45.0	30.0	52.5	20.3	1.2	15	33	320	7.5	20.0
60	57.5	50.0	35.0	52.5	20.3	1.2	15	33	320	6.5	22.0
80	57.5	57.0	38.0	52.5	20.3	1.2	15	33	320	5.0	25.0
90	57.5	55.0	45.0	52.5	20.3	1.2	15	33	320	4.5	26.0
VR=900Vdc at 85℃
C(u F)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us ）	Tgδ*10-4		ESR@10 kHz (mΩ）	Irms(A)@85℃10kHz
C(u F)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us ）	1kHz	10kHz	ESR@10 kHz (mΩ）	Irms(A)@85℃10kHz
1.5	32.0	18.0	9.0	27.5	-	0.8	50	9	90	85	1.5
2.0	32.0	21.0	11.0	27.5	-	0.8	50	9	90	45	3.0
4.0	32.0	24.5	15.0	27.5	-	0.8	50	9	90	21.5	6.0
6.0	32.0	30.0	16.0	27.5	-	0.8	50	9	90	18.0	6.5
10.0	32.0	37.0	22.0	27.5	-	1.0	50	9	90	12.0	12.5
8	41.0	30.0	16.0	37.5	-	1.0	30	17	150	21	5.5

12	42.0	32.5	19.0	37.5	-	1.0	30	17	150	14.0	6.5
15	42.0	40.0	20.0	37.5	10.2	1.2	30	17	150	11.0	10.5
20	42.0	44.0	24.0	37.5	10.2	1.2	30	17	150	8.5	15.0
25	42.0	45.0	30.0	37.5	20.3	1.2	30	17	150	6.5	17.0
28	42.0	45.0	30.0	37.5	20.3	1.2	30	17	150	6.0	18.0
30	42.0	46.0	35.0	37.5	20.3	1.2	30	17	150	5.5	19.0
35	42.0	50.0	35.0	37.5	20.3	1.2	30	17	150	5.0	21.0
30	57.5	45.0	30.0	52.5	20.3	1.2	15	33	320	11.0	15.0
35	57.5	45.0	30.0	52.5	20.3	1.2	15	33	320	9.5	12.5
45	57.5	50.0	35.0	52.5	20.3	1.2	15	33	320	7.5	16.5
60	57.5	57.0	38.0	52.5	20.3	1.2	15	33	320	5.6	22.0
70	57.5	55.0	45.0	52.5	20.3	1.2	15	33	320	4.5	28.0
VR=1000Vdc at 85℃
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	Tgδ*10-4		ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	1kHz	10kHz	ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
1.0	32.0	18.0	9.0	27.5	-	0.8	60	8	80	85	1.5
1.5	32.0	21.0	11.0	27.5	-	0.8	60	8	80	45	3.0
3.0	32.0	24.5	15.0	27.5	-	0.8	60	8	80	21.5	4.0
4.5	32.0	30.0	16.0	27.5	-	0.8	60	8	80	18.0	5.5
7.0	32.0	37.0	22.0	27.5	-	1.0	50	8	80	12.0	12.5
6.0	41.0	30.0	16.0	37.5	-	1.0	60	15	140	21	5.5
8.0	42.0	32.5	19.0	37.5	-	1.0	40	15	140	14.0	6.5
10	42.0	40.0	20.0	37.5	10.2	1.0	40	15	140	11.0	10.5
12	42.0	40.0	20.0	37.5	10.2	1.2	40	15	140	11.5	11.0
15	42.0	44.0	24.0	37.5	10.2	1.2	40	15	140	8.5	15.0
18	42.0	45.0	30.0	37.5	20.3	1.2	40	15	140	6.5	17.0
20	42.0	45.0	30.0	37.5	20.3	1.2	40	15	140	6.0	18.0
25	42.0	46.0	35.0	37.5	20.3	1.2	40	15	140	5.5	19.0
25	57.5	45.0	30.0	52.5	20.3	1.2	20	28	280	11.0	15.0
30	57.5	45.0	30.0	52.5	20.3	1.2	20	28	280	9.5	12.5
35	57.5	50.0	35.0	52.5	20.3	1.2	20	28	280	7.5	16.5
40	57.5	57.0	38.0	52.5	20.3	1.2	20	28	280	5.6	21.0
55	57.5	55.0	45.0	52.5	20.3	1.2	20	28	280	4.5	28.0

VR=1100Vdc at 85℃
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	Tgδ*10-4		ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
C (uF)	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt (V/us)	1kHz	10kHz	ESR@10 kHz (mΩ)	Irms(A)@85℃10kHz
1.2	32	21.0	11.0	27.5	-	0.8	70	8	70	60	2.5
2.5	32.0	24.5	15.0	27.5	-	0.8	70	8	70	25	4.5
3.5	32.0	30.0	16.0	27.5	-	0.8	70	8	70	18	8.0
5	32.0	37.0	22.0	27.5	-	1.0	70	8	70	15	10.5
6	32.0	37.0	22.0	27.5	-	1.0	70	8	70	14.5	12.5
4.5	41.0	30.0	16.0	37.5	-	1.0	45	15	130	30.5	4.0
7	42.0	32.5	19.0	37.5	-	1.0	45	15	130	21.0	7.0
8	42.0	40.0	20.0	37.5	10.2	1.0	45	15	130	18.0	8.5
10	42.0	40.0	20.0	37.5	10.2	1.0	45	15	130	14.5	11.0
12	42.0	44.0	24.0	37.5	10.2	1.0	45	15	130	12.0	12.5
15	42.0	45.0	30.0	37.5	20.3	1.2	45	15	130	10.0	14.0
17	42.0	45.0	30.0	37.5	20.3	1.2	45	15	130	8.0	17.0
20	42.0	46.0	35.0	37.5	20.3	1.2	45	15	130	7.0	18.0
22	42.0	50.0	35.0	37.5	20.3	1.2	45	15	130	6.5	16.0
20	57.5	45.0	30.0	52.5	20.3	1.2	25	27	260	15.0	15.5
25	57.5	45.0	30.0	52.5	20.3	1.2	25	27	260	11.0	18.5
30	57.5	50.0	35.0	52.5	20.3	1.2	25	27	260	9.5	19.5
35	57.5	57.0	38.0	52.5	20.3	1.2	25	27	260	8.5	20.5
45	57.5	55.0	45.0	52.5	20.3	1.2	25	27	260	7.0	22.0

更多的产品尺寸和参数需要定制（More product sizes and parameters need to be customized）

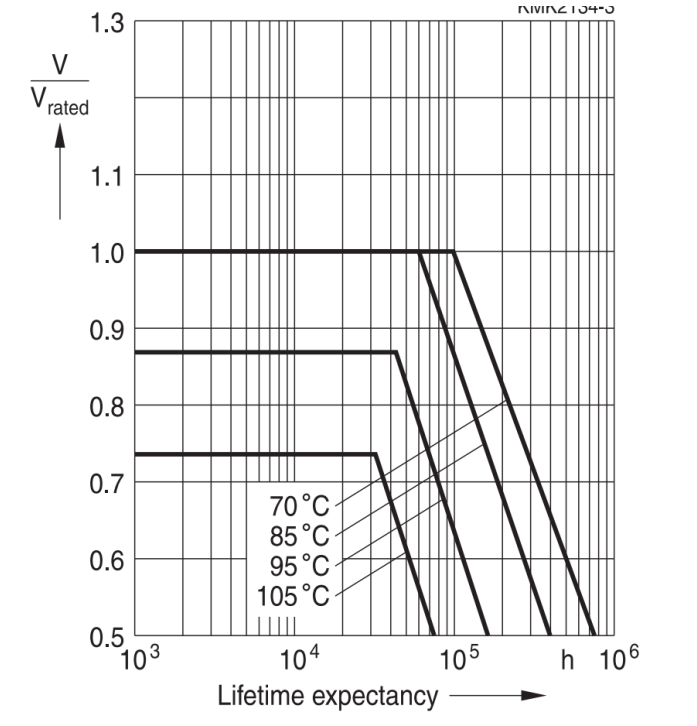

■预期寿命曲线 Expected Lifetime curve
