■产品结构
介质:金属化聚丙烯薄膜
外壳:铝壳封装
内部灌封:油填充
■Product Structure
Medium: metallized polypropylene film
Shell: Aluminium shell package
Internal potting: oil filling
■特点
•损耗小，内部温升低
•可靠性高，有自愈性，寿命长
•电容量稳定，内置防爆装置，使用安全可靠
■Features
Low loss and low internal temperature rise
High reliability,Self-healing property,Long lifetime
Stable capacitance, built-in explosion-proof device, safe and reliable use
■应用场合
•空调、洗衣机、洗碗机、风机等电器
•各类压缩机的启动和运转
■Applications
Air conditioner, washing machine, dishwasher, fan and other electrical appliances
Starting and running of various compressors

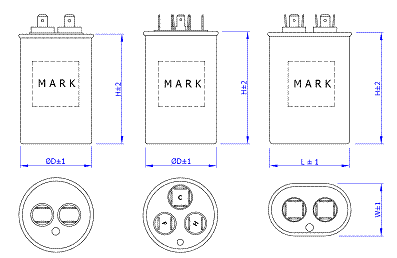

■外形图 Outline Drawing
■技术要求 Specifications
额定电压Rated voltage（VR)： 110V.AC-600V.AC (50/60Hz) | 稳态过电压：允许1.1Un下长期运行 Steady state over voltage: long-term operation under 1.1Un is allowed |
容量偏差Capacitance tolerance： ±5%（J）、±10%（K） | 稳态过电流：允许1.3ln下长期运行 Steady state over current: long-term operation under 1.3ln is allowed |
耗损角正切值Dissipation factor change ： tgδ≤0.0025(100Hz) | 优选气候类别Climatic category： 40/70/21 40/85/21 |
极间耐压AC test voltage between terminals： 2Un/5s | 运行等级Operation life time： A(30000h）B(10000h）C(3000h） |
极壳耐压Voltage test terminal to case：2000V.AC 2Un+1000VAC | 安全等级Safe class： P2 |
产品认证Product certification： CQC﹑UL﹑CUL、VDE |
|
■技术参数 Technical data ( mm )
Rated Cap. | 250/300VAC | 400/450 VAC |
Cylindrial圆柱形 | Oval椭圆形 | Cylindrial圆柱形 | Oval椭圆形 |
D | H | L×W×H | D | H | L×W×H |
10μF | 40 | 55 | 51.5×31.5×65 | 40 | 65 | 51.5×31.5×65 |
15μF | 40 | 55 | 51.5×31.5×65 | 40 | 65 | 51.5×31.5×65 |
20μF | 40 | 65 | 51.5×31.5×75 | 40 | 75 | 51.5×31.5×75 |
25μF | 40 | 65 | 51.5×31.5×75 | 45 | 85 | 51.5×31.5×85 |
30μF | 40 | 75 | 71.5×45×65 | 45 | 95 | 71.5×45×75 |
35μF | 40 | 75 | 71.5×45×65 | 50 | 95 | 71.5×45×85 |
40μF | 45 | 75 | 71.5×45×75 | 50 | 95 | 71.5×45×85 |
50μF | 45 | 85 | 71.5×45×85 | 50 | 115 | 71.5×45×100 |
60μF | 45 | 95 | 71.5×45×100 | 50 | 125 | 71.5×45×100 |
30+5μF | -- | -- | ---- | 50 | 100 | ---- |
35+5μF | -- | -- | ---- | 50 | 100 | ---- |
40+5μF | -- | -- | ---- | 50 | 110 | ---- |
45+5μF | -- | -- | ---- | 50 | 120 | ---- |
50+5μF | -- | -- | ---- | 50 | 120 | ---- |
55+5μF | -- | -- | ---- | 55 | 125 | ---- |
60+5μF | -- | -- | ---- | 60 | 110 | ---- |
更多的产品尺寸和参数需要定制（More product sizes and parameters need to be customized）
