■产品结构
介质:金属化聚丙烯薄膜
外壳:塑壳封装
内部灌封:树脂填充（UL94 V-0）
■Product Structure
Medium: metallized polypropylene film
Shell: Plastic shell package
Internal potting: resin filling (UL94 V-0)
■特点
•损耗小，内部温升低
•高耐压、耐湿热、低容降
•可靠性高，有自愈性，寿命长
■Features
Low loss and low internal temperature rise
High pressure resistance, damp heat resistance, low capacitance drop
High reliability,Self-healing property,Long lifetime
■应用场合
•LED驱动模块、电表、小家电等低功率电子消费产品
•阻容降压电路
■Applications
Low power electronic consumer products such as LED driver modules, electricity meters, small household appliances, etc
Resistance capacitance step-down circuit

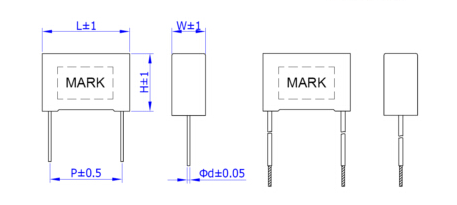

■外形图 Outline Drawing
■技术要求 Specifications
执行标准Implemented standard | GB/T14472-1998,UL60384-14,IEC60384-14 |
气候类别Climatic category | 40/105/21(VDE,ENEC, CQC); 40/110/56/B (UL&CUL) |
认证类别 Sub class | X2 |
额定电压 Rated voltage | 250/275/310VAC (50/60Hz) |
容量范围 Capacitance range | 0.22μF～3.3μF |
容量偏差Capacitance tolerance | ±5%(J)、±10%(K) |
耐电压 Voltage proof | 极间between terminals | 4.3*UR（VDC）/10s |
极壳between terminals and case | 2*UR+1500（VAC）/ 60s (2000VAC min) |
绝缘电阻Insulation resistance (20℃) | 极间between terminals | ≥15000MΩ, CR≤0.33μF(100Vdc,60s) ≥5000S , CR >0.33μF(100Vdc,60s) |
极壳between terminals and case | ≥30000MΩ (100Vdc,60s) |
损耗角正切Tangent of loss angle (20℃) | CR≤1μF | ≤0.001(1KHz); ≤0.003(10KHz) |
CR>1μF | ≤0.002(1KHz) |
电压爬升率Pulse rise time(dv/dt) | 100V/μs Max |
■技术参数 Technical data ( mm )
Rated Cap. | L | W | H | P | Фd |
| Rated Cap. | L | W | H | P | Фd |
0.22μF | 18.0 | 8.5 | 14.5 | 15.0 | 0.8 | 0.47μF | 31.0 | 9.0 | 18.0 | 27.5 | 0.8 |
0.33μF | 18.0 | 10.0 | 15.8 | 15.0 | 0.8 | 0.68μF | 31.5 | 10.8 | 19.5 | 27.5 | 0.8 |
0.47μF | 18.0 | 11.2 | 19.2 | 15.0 | 0.8 | 1.0μF | 31.5 | 10.8 | 19.5 | 27.5 | 0.8 |
0.22μF | 26.3 | 7.0 | 16.5 | 22.5 | 0.8 | 1.0μF | 31.5 | 13.0 | 21.6 | 27.5 | 0.8 |
0.33μF | 26.3 | 8.5 | 17.0 | 22.5 | 0.8 | 1.2μF | 31.5 | 13.0 | 21.6 | 27.5 | 0.8 |
0.47μF | 26.3 | 10.0 | 19.0 | 22.5 | 0.8 | 1.5μF | 31.5 | 14.0 | 25.0 | 27.5 | 0.8 |
0.68μF | 26.3 | 10.0 | 19.0 | 22.5 | 0.8 | 1.8μF | 32.0 | 16.0 | 25.5 | 27.5 | 0.8 |
0.82μF | 26.3 | 11.0 | 20.0 | 22.5 | 0.8 | 2.0μF | 32.0 | 15.0 | 30.0 | 27.5 | 0.8 |
1.0μF | 26.3 | 13.0 | 23.0 | 22.5 | 0.8 | 2.2μF | 32.0 | 15.0 | 30.0 | 27.5 | 0.8 |
更多的产品尺寸和参数需要定制（More product sizes and parameters need to be customized）
