■产品结构
介质:金属化聚丙烯薄膜
外壳:塑壳或者铝壳封装
内部灌封:树脂填充（UL94 V-0）
■Product Structure
Medium: metallized polypropylene film
Shell: Plastic or aluminium shell package
Internal potting: resin filling (UL94 V-0)
■特点
•损耗小，内部温升低
•可靠性高，有自愈性，寿命长
■Features
Low loss and low internal temperature rise
High reliability,Self-healing property,Long lifetime
■应用场合
•洗衣机、卷闸门电机、抽油烟机、碎纸机、水泵等电器
•各类交流电机启动和运转
■Applications
Washing machine, shutter motor, range hood, paper shredder, water pump and other electrical appliances
Starting and running of various AC motors

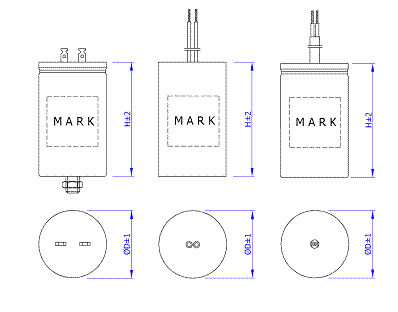

■外形图 Outline Drawing
■技术要求 Specifications
额定电压Rated voltage（VR)： 110V.AC-600V.AC (50/60Hz) | 稳态过电压：允许1.1Un下长期运行 Steady state over voltage: long-term operation under 1.1Un is allowed |
容量偏差Capacitance tolerance： ±5%（J）、±10%（K） | 稳态过电流：允许1.3ln下长期运行 Steady state over current: long-term operation under 1.3ln is allowed |
耗损角正切值Dissipation factor change ： tgδ≤0.0020(100Hz) | 优选气候类别Climatic category： 40/70/21 40/85/21 40/105/21 |
极间耐压AC test voltage between terminals： 2Un/3s | 运行等级Operation life time： A(30000h）B(10000h）C(3000h） |
极壳耐压Voltage test terminal to case：2000V.AC 2Un+1000VAC | 安全等级Safe class： S0-S3 |
产品认证Product certification： CQC﹑UL﹑CUL、VDE﹑TUV、CB、CE | 故障电流Fault current： UL、CUL：10,000AFC ( UL 810) |
■技术参数 Technical data ( mm )
Voltage | 250/300VAC | 400VAC | 450VAC | 500VAC |
μF | ФD | H | ФD | H | ФD | H | ФD | H |
1μF | -- | -- | -- | -- | 26 | 40 | 26 | 40 |
2μF | -- | -- | -- | -- | 26 | 40 | 26 | 40 |
3μF | -- | -- | -- | -- | 30 | 50 | 30 | 50 |
4μF | -- | -- | -- | -- | 30 | 50 | 30 | 55 |
5μF | 26 | 40 | 30 | 50 | 30 | 55 | 35 | 55 |
6μF | 26 | 52 | 30 | 55 | 30 | 55 | 35 | 55 |
8μF | 30 | 50 | 30 | 55 | 35 | 55 | 35 | 65 |
10μF | 30 | 55 | 35 | 55 | 35 | 65 | 40 | 65 |
12μF | 35 | 55 | 35 | 65 | 40 | 65 | 40 | 65 |
15μF | 35 | 55 | 35 | 65 | 40 | 65 | 40 | 72.5 |
18μF | 35 | 55 | 40 | 65 | 44 | 65 | 44 | 75 |
20μF | 36 | 65 | 40 | 65 | 44 | 65 | 45 | 75 |
25μF | 40 | 65 | 44 | 65 | 44 | 75 | 50 | 75 |
30μF | 40 | 65 | 44 | 75 | 50 | 75 | 50 | 85 |
35μF | 44 | 65 | 45 | 75 | 50 | 85 | 50 | 95 |
40μF | 44 | 65 | 50 | 75 | 50 | 90 | 50 | 105 |
45μF | 44 | 75 | 50 | 75 | 50 | 95 | -- | -- |
50μF | -- | -- | 85 | 50 | 105 | 50 | -- | -- |
更多的产品尺寸和参数需要定制（More product sizes and parameters need to be customized）
